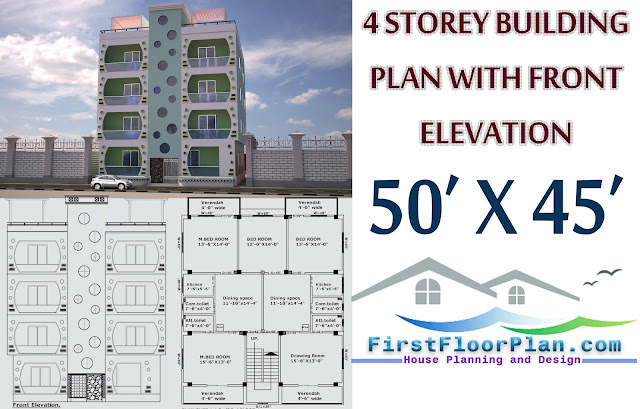

4 Storey Building Plan with  Front Elevation :


4 storey building plan with  front elevation
4 storey building plan with  front elevation


This is the 4 storey building area of 2000 square feet with length 50 feet and with 45 feet. This house floor plan divided into two units. Two units are almost the same plan into total 4 storey building.

4 Storey Building Floor Plan :

2000 sq ft floor plan
2000 sq ft floor plan

Plan Details :

  • Every unit has two bedrooms, one dining and drawing-room, a kitchen and two bathrooms.
  • In the front side of the 4 storey building stay two verandahs and stair room.
  • The first unit of the floor plan has two master bedrooms with balcony.
  • And one master bedroom has an attached bathroom.
  • This unit has no drawing-room but has one big dining space.
  • Otherwise, the second unit has one big drawing and one big dining space.
  • Every unit has one attached bathroom and one common bathroom.



Front Elevation :

4 storey building Front Elevation 2d
4 storey building Front Elevation 2D


4 storey building Front Elevation 3D
4 storey building Front Elevation 3D

This 3D front elevation clear that balcony designs and windows position and color combinations.
