Three Storey Building Floor plan and Front Elevation

Three Storey Building Floor plan
Three Storey Building Floor plan

In this building plan you get 45' X 40' Residential Building floor plan Auto-cad 2D file  with front elevation. It's a completely three storey building floor plan.

Three Storey Building Front Elevation:

Three Storey Building Front Elevation
Three Storey Building Front Elevation

Three Storey Building Floor plan:

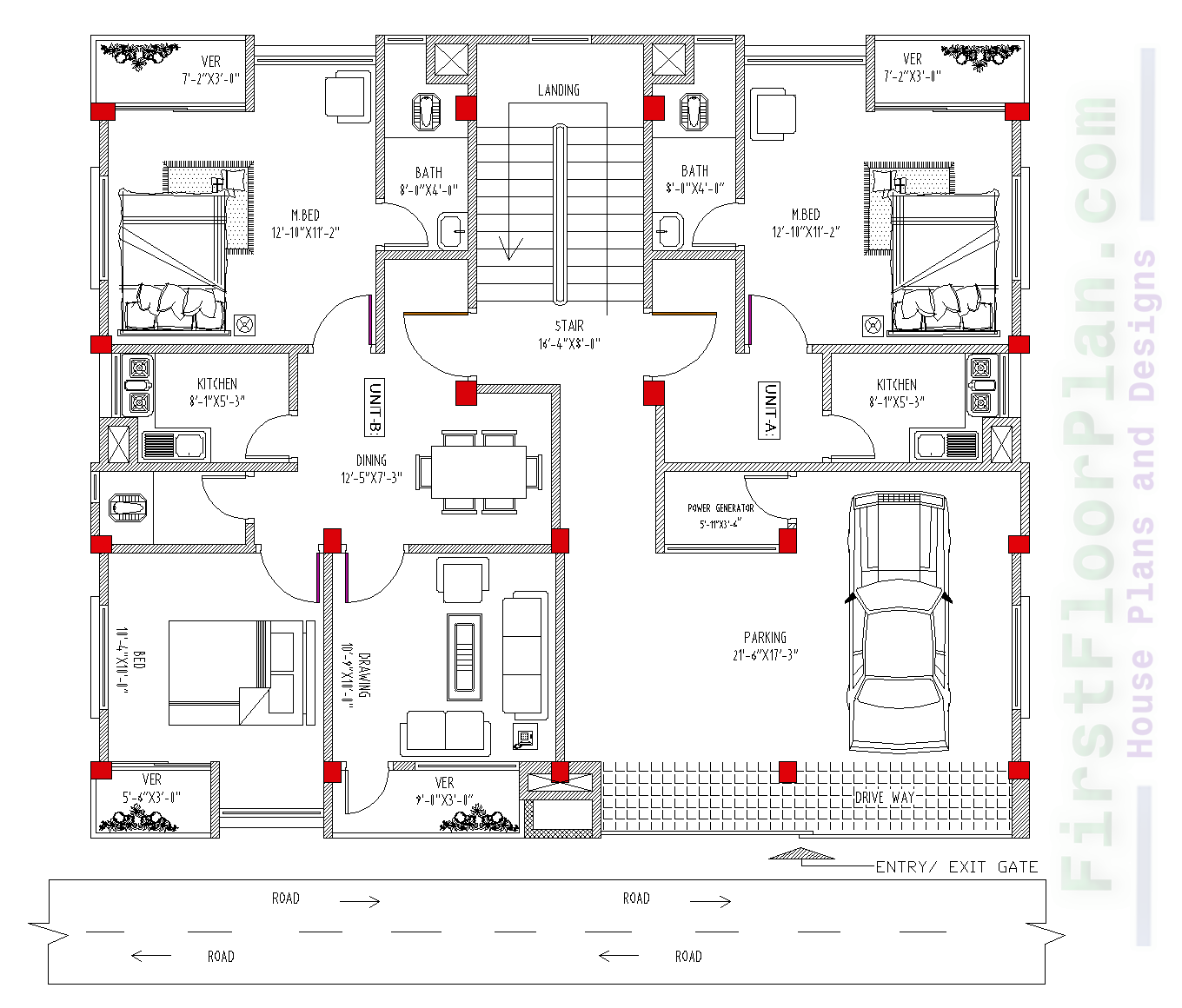

Three Storey Building Ground Floor Plan
Three Storey Building Ground Floor Plan

Ground Floor Plan Details:

  • Ground floor plan divided by two units.
  • One single bedroom unit with parking space and one master unite.
  • Master Unit has three bedroom and one kitchen and one dining space.
  • Ground floor parking area 2100.00 square feet.
Three Storey Building First and Typical Floor Plan
Three Storey Building First and Typical Floor Plan


AutoCAD 2D File:




Related Floor Plans:



First Floor Plan Details:

  • There are two units in this floor plan.
  • Two units are same numbers of room.
  • Every unit has one master bedroom, one common bedroom, one drawing room, one dinging room, and one kitchen.
  • Each unit has two balcony, one attached bathroom and one common bathroom.
